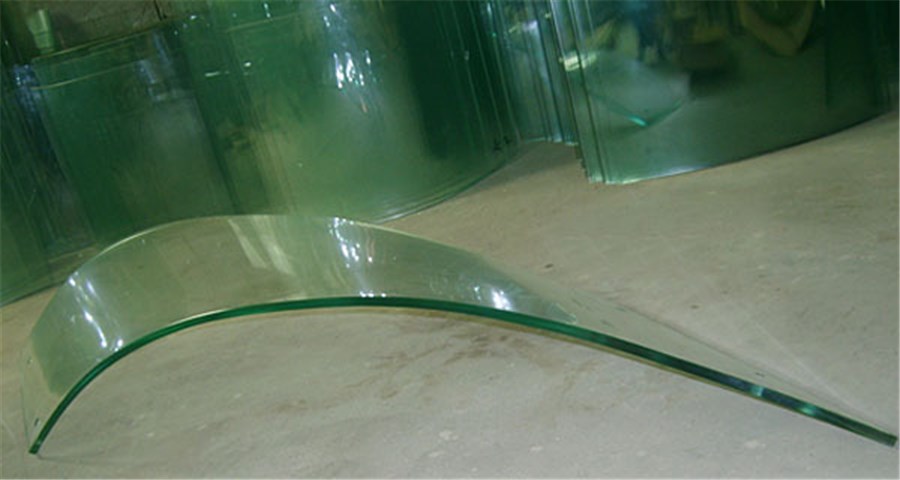

Hot Curved Glass:

Hot curved glass is made of float glass which is firstly heated to soften point on metal mould and then curved to shape by weight of glass itself and outside force, and finally cooled down.

Features of Hot curved glass: Safety, mechanical attack resistance performance and thermal stability, anti-wind pressure ability and deflection performance.

Specification:

Curved glass:

Thickness of glass: 3mm-25mm

Max size:2800*6400 Min size: 50*50mm

Radius: 200mm-2800mm     Max Arch Height:1200mm

Any shape according to customers’ requirement is available, for example S form, U form, right-angle and spherical surface.

Double Curved Tempered Glass

Curved tempered glass is available for different shape, but also can meet the stress requirement which makes different building design possible.

Specification:

Thickness of glass: 5-25mm

Max. size: 2000x3000mm   Min. size; 200x300mm

Futures of Double Curved Tempered Glass: Good accuracy in arc, less light aberration.

Application: curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure, glass enclose etc.

Single Curved Tempered Glass

Curved tempered glass is curved to shape by fast cooling down.

Futures:

Good accuracy in arc, less light aberration.

Tempered curved glass: curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure, glass enclose etc.

. Curved Tempered Glass:5-19mm (the first line)
   . Max Size:2800*2650  Min Size: 600*200
   Radius: 5-8mm  R>=1300
         10-12mm R>=1300
           15-19mm  R>=1300
(2). Curved Tempered Glass:5-19mm (the second line)
       Max Size: 2440*5200mm  Min Size:600*400
       Radius: 5-8mm R>=1100
                10-12mm  R>=1100
                15-19mm R>=1300

Quality:

Hot curved glass: In accordance with Standard Q/SNY-1999 Hot Curved Glass

Curved Tempered Glass: In accordance with Standard Q/SNY-1999 Curved Tempered Glass

Applications:

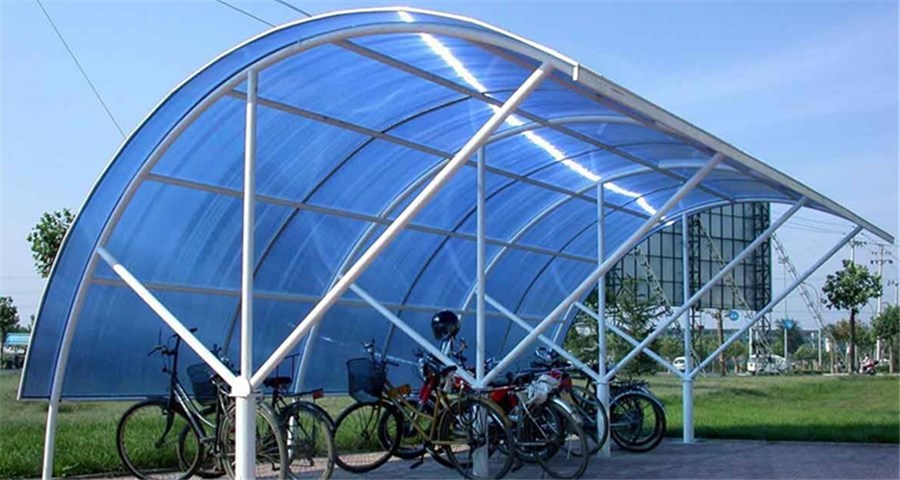

Curved glass: It’s used in curtain wall with curved structure, skylight, sightseeing elevator, Hyperboloid and taper shape buildings.Curved Tempered Glass
Curved tempered glass is curved to shape by fast cooling down. It's available for different shape, but also can meet the stress requirement.
